6061 Aluminum Bar

Among the various properties of 6061 aluminum, it is considered to be versatile, easy to process, and relatively inexpensive. It is used in aerospace engineering, aircraft and helicopters, screw machine parts, yachts and boats. It is also very suitable for tank bodies, bicycle frames, structural parts, food and beverage cans. You will also find that 6061 aluminum is often used in car chassis, truck frames, flashlights, fishing line wheels, pistol suppressors, cover plates and platforms, vacuum chambers, etc.

Classification :

Aluminum Bar

Keywords :

Aluminum Bar

WhatsApp : +8618963069455

E-mail :info@zgsggroup.com

PRODUCT DETAILS

Product Description

Product Parameters

Diameter	5-650mm or customized	Length	100-2000mm or customized
Certificate	ISO.SGS.BV
Standard	He, AiSi, ASTM, GB, DIN, EN ect.
Brand	1000 Series:1050 1060 1070 1100 1200 1235 ect. 3000Series:3003 3004 3005 3104 3105 3A21 ect. 5000 Series:5005 5052 5083 5086 5154 5182 5251 5754 5A05 ect. 6000 Series:6061 6063 6082 6A02 ect. 7000 Series:7050 7475 7075 ect. 8000 Series:8A06 8011 8090 ect.
Surface	Coating, embossing, drawing, polishing, anodizing, etc.
OEMService	Punching, cutting special size, making flat surface, surface treatment, etc.
Delivery time	received.30%After deposit7-15working day
Application	Construction, shipbuilding, decoration, industry, manufacturing, machinery, hardware and other fields
Sample	Free OffersSample
Packaging	Strapping, plastic bag, film, wooden pallet Standard seaworthy export packing or according to customer requirement

chemical composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others: Each	Others: Total	Al: Min.
1050	0.25	0.40	0.05	0.05	0.05	-	0.05	0.03	0.03	-	99.50
1060	0.25	0.35	0.05	0.03	0.03	-	0.05	0.03	0.03	-	99.60
1070	0.20	0.25	0.04	0.03	0.03	-	0.04	0.03	0.05	-	99.70
1100	0.95 Si Fee		0.05~0.20	0.05	-	-	0.1	-	0.05	0.15	99.0
2014	0.5~1.2	0.7	3.9~5.0	0.4~1.2	0.2~0.8	0.10	0.25	0.15	0.05	0.15	Allowance
2017	0.2~0.8	0.7	3.5~4.5	0.4~1.0	0.4~0.8	0.10	0.25	0.15	0.05	0.15	91.5 - 95.5
2024	0.50	0.50	3.8~4.9	0.3~0.9	1.2~1.8	0.10	0.25	0.15	0.05	0.15	Allowance
3003	0.60	0.70	0.05~0.20	1.0~1.5	-	-	0.10	-	0.05	0.15	Allowance
3A21	0.60	0.70	0.20	1.0-1.6	0.05	-	0.15	0.1-0.2	-	-	Allowance
3004	0.30	0.70	0.25	1.0~1.5	0.8~1.3	-	0.25	-	0.05	0.15	Allowance
3005	0.60	0.70	0.30	1.0~1.5	0.2~0.6	0.10	0.25	0.10	0.05	0.15	Allowance
3105	0.60	0.70	0.30	0.3~0.8	0.2~0.8	0.20	0.40	0.10	0.05	0.15	Allowance
5005	0.30	0.70	0.20	0.20	0.5~1.1	0.1	0.25	-	0.05	0.15	Allowance
5052	0.25	0.40	0.10	0.10	2.2~2.8	0.15~0.35	0.10	-	0.05	0.15	Allowance
5754	0.40	0.40	0.10	0.50	2.6~3.6	0.30	0.20	0.15	0.05	0.15	Allowance
5A05	0.50	0.50	0.10	0.3-0.6	4.8-5.5	-	0.20	-	0.05	0.05	Allowance
5083	0.40	0.40	0.10	0.4~1.0	4.0~4.9	0.05~0.25	0.25	0.15	0.05	0.15	Allowance
6061	0.40~0.8	0.70	0.15~0.4	0.15	0.8~1.2	0.04~0.35	0.25	0.15	0.05	0.15	Allowance
6082	0.70~1.3	0.50	0.10	0.4~1.0	0.6~1.2	0.25	0.20	0.10	0.05	0.15	Allowance
7075	0.40	0.50	1.2~2.0	0.30	2.1~2.9	0.18~0.28	5.1~6.1	0.20	0.05	0.15	Allowance

Mechanical properties

Tensile Strength

(MPa)

Yield strength

(MPa)

ElongationRate

(%)

Hardness

(HB)

310

276

12-25

Physical Performance

Density	Melting Point	modulus of elasticity	Thermal conductivity
2.7 Kg/m³	585 °C	68.9GPa	151-202W/m.K

annealing state

Brand	annealing state
1xxx: 1050, 1050A, 1060, 1100	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
3xxx: 3003, 3004, 3005, 3105	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454	O, H22, H24, H26, H28, H32, H34, H36, H38, H111
6xxx: 6061, 6082	T4, T6, T451, T651
2xxx: 2024	T3, T351, T4
7xxx: 7075	T6, T651

Scope of application

AluminumUSES AND APPLICATION AREA
Food Packaging	Beverage can ends, cans, bottle caps, etc.
Building	Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc.
Transportation	Auto parts, passenger car bodies, aviation ships and air cargo containers.
ElectronicEquipment	Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc.
Consumer Goods	umbrellas, cooking utensils, sports equipment, etc
Other	Military, color coated aluminum plate

Alloy Series	Chinese standard	American standard	European standard
1xxx series	1050	-	-
	1050A	-	EN AW-1050A
	1060	1060	-
	1100	1100	-
2xxx series	2024	2024	EN AW-2024
3xxx series	3003	3003	EN AW-3003
	3004	3004	EN AW-3004
	3005	3005	EN AW-3005
	3105	3105	EN AW-3105
5xxx series	5005	5005	EN AW-5005
	5052	5052	EN AW-5052
	5754	5754	EN AW-5754
	5083	5083	EN AW-5083
	5086	5086	EN AW-5086
	5182	-	EN AW-5182
	5049	-	EN AW-5049
	5251	-	EN AW-5251
6xxx series	6061	6061	EN AW-6061
6xxx series	6082	-	EN AW-6082
7xxx series	7075	7075	EN AW-7075

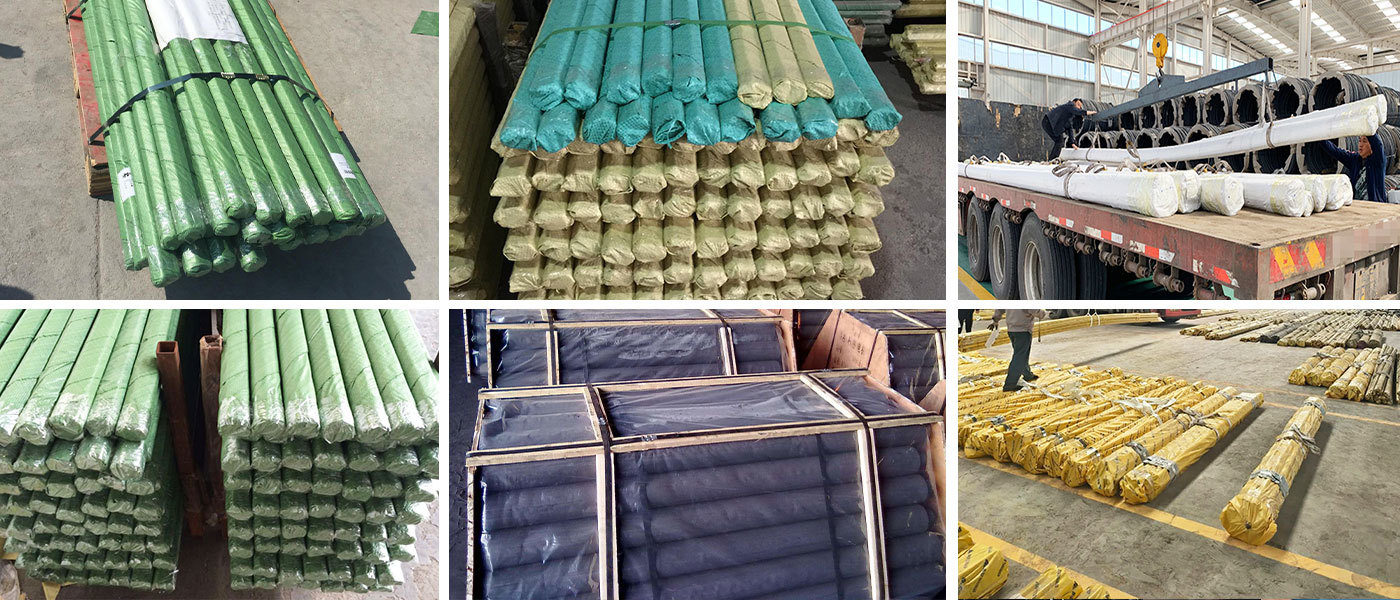

Packing and delivery

Established in 2005, we are a key steel manufacturer boasting a 400,000㎡ production site and an annual output of 2.5 million tons. Our offerings span mild steel, alloy plates, coated steel coils, and welded pipes, serving industries like machinery, shipbuilding, and infrastructure.

Customer Visit

Our market reach covers 25+ nations, with a focus on building enduring client partnerships through consistent supply and responsive service. Dedicated to progress and eco-friendliness, we prioritize tech upgrades and low-carbon production to fuel sector development.

HONOR

Certified by ISO 9001, SGS, and API, we guarantee top-tier quality and safety. Our market reach covers 25+ nations, with a focus on building enduring client partnerships through consistent supply and responsive service.
